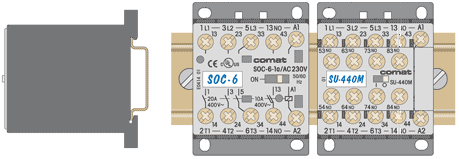

Miniature contactor SOC-6 and installation contactor SOC-2

This and the next web pages are related exclusively to COMAT and MULTICOMAT products that in the past have been developed, manufactured and delivered from Switzerland.
Some of the content is outdated and serves only for illustrative purposes.
The new products are branded COMAT RELECO.

Miniature contactor SOC-6 and installation contactor SOC-2 are the extended product group of COMAT industrial relays.

Miniature and installation contactors

With three main contacts 20A and one auxiliary
Contact 10A (signal double contact).
Contact opening >3 mm and test voltage 4000V.
Specially suitable for "safety operation" in low voltage circuits.
1 Auxiliary twin contact 10A, 400V~.
4 Additional auxiliary contacts 10A, 400V~ optional NO or NC.
Snap-on parallel modules for coil.
RC modules for interference limitation.
Mechanical interlock of 2 contactors.
Connection diagram on front.

Miniature contactor	Series	Socket type	Width mm	Contacts
Miniature contactor, installation contactor	SOC-6 SOC-2	DIN 35	45	20A
