Plug-in time relays COMAT C81 C82 C83 C84 C85 CS1 CS2 CS3 C64 C65 C66 C52 C53 C55 C56

This and the next web pages are related exclusively to COMAT and MULTICOMAT products that in the past have been developed, manufactured and delivered from Switzerland.
Some of the content is outdated and serves only for illustrative purposes.
The new products are branded COMAT RELECO.

Type of construction is Plug-in.
In order to use plug-in devices, a matching socket is required.
These versions are very suitable for maintenance since no rewiring is needed for replacing of relays.

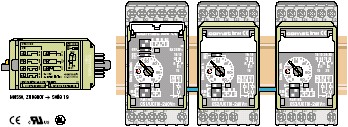

Plug-in time relays

Plug-in time relays	Series	Time Range	Width mm	Contacts
Economy Timer 2 functions	C81	0.2 s-30min	22.5	8A
Economy Timer 4 functions	C82	0.5 s-60min	22.5	8A
Universal Multifunction Timer	C83	50 ms-60h	22.5	8A
Time relay with no auxiliary voltage	C84	0.1 s-20min	22.5	5A
Double time relay	C85	2x 50 ms-60h	22.5	8A
Economy Timer 4 functions	CS1	50 ms-60min	38	8A
Universal Multifunction Timer	CS2	50 ms-60h	38	8A
Universal Multifunction Timer	CS3	50 ms-60h	38	6A
Time relay with no auxiliary voltage	C64	0.1 s-20 min	38	5A
Restart delay relay	C65 / C66	1-6 min	38	6A
Universal Multifunction Timer 2 functions (digital)	C52	0.1s-60min	38	8A
Universal Multifunction Timer 10 functions (digital)	C53	0.1s-60h	38	8A
Universal Multifunction Timer 15 functions (digital)	C55 / C56	0.01s-60 days	38	5A
Monofunction Timer Time cube for industrial relays 5 functions, time setting	CT2	0.2 s-30min	38	10A
Monofunction Timer Time cube for industrial relays 5 functions, time setting	CT3	0.2 s-30min	38	10A

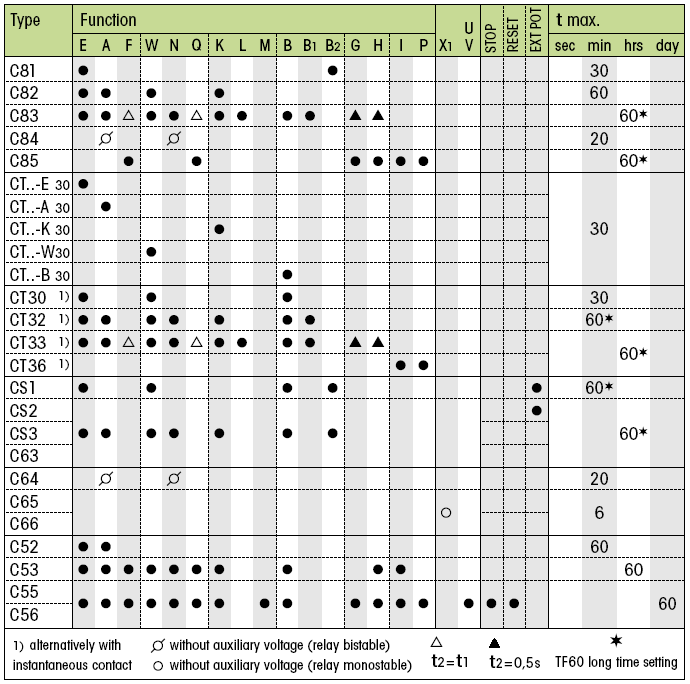

Typical time functions of COMAT, MULTICOMAT:

Delay functions:

E: On delay
A: Off delay
F: On and off delay

Shot timing modes:

W: One shot leading edge
N: One shot trailing edge
Q: One shot and trailing edge

Pulse shaping:

K: Pulse shaping
L: Pulse shaping, retrigger
M: Pulse shaping

Blinker functions:

B: Blinker, pulse start
B1: Blinker, pulse start, trailing pulse
B2: Blinker, interval start

Delayed pulse:

G: On delay single shot
H: On delay single shot

Repeat cycle timer:

I: Repeat cycle timer, pulse start
P: Repeat cycle timer, interval start

Special functions:

Y: Star-delta timer
X1: Restart delay

Pulse sequence monitoring:

U: Pulse sequence monitoring
V: Pulse sequence monitoring
